The Story

Description:

-Simple and effective Heavy Duty U-bolt and plate flip kit.

-Cleans up brackets hanging below the axle for aesthetics or keeps from catching on obstacles.

Application:

-Axle: 85-97 Ford Dana 60 or 99-04 Ford Superduty Dana 50/60

- Springs: Kit is designed around lift spring packs 3". Shorter and taller leaf packs will require special length U-bolts which we do not offer and will have to be sourced locally.

Additional Information: Shock mounts are 3/16ths formed steel, welded in place, 1/2" eye.

Installation:

Requires notching of differential housing lower web to maintain u-bolt and cutting off the factory panhard mount.

Will need to modify the factory panhard mount if retaining the stock panhard bar.

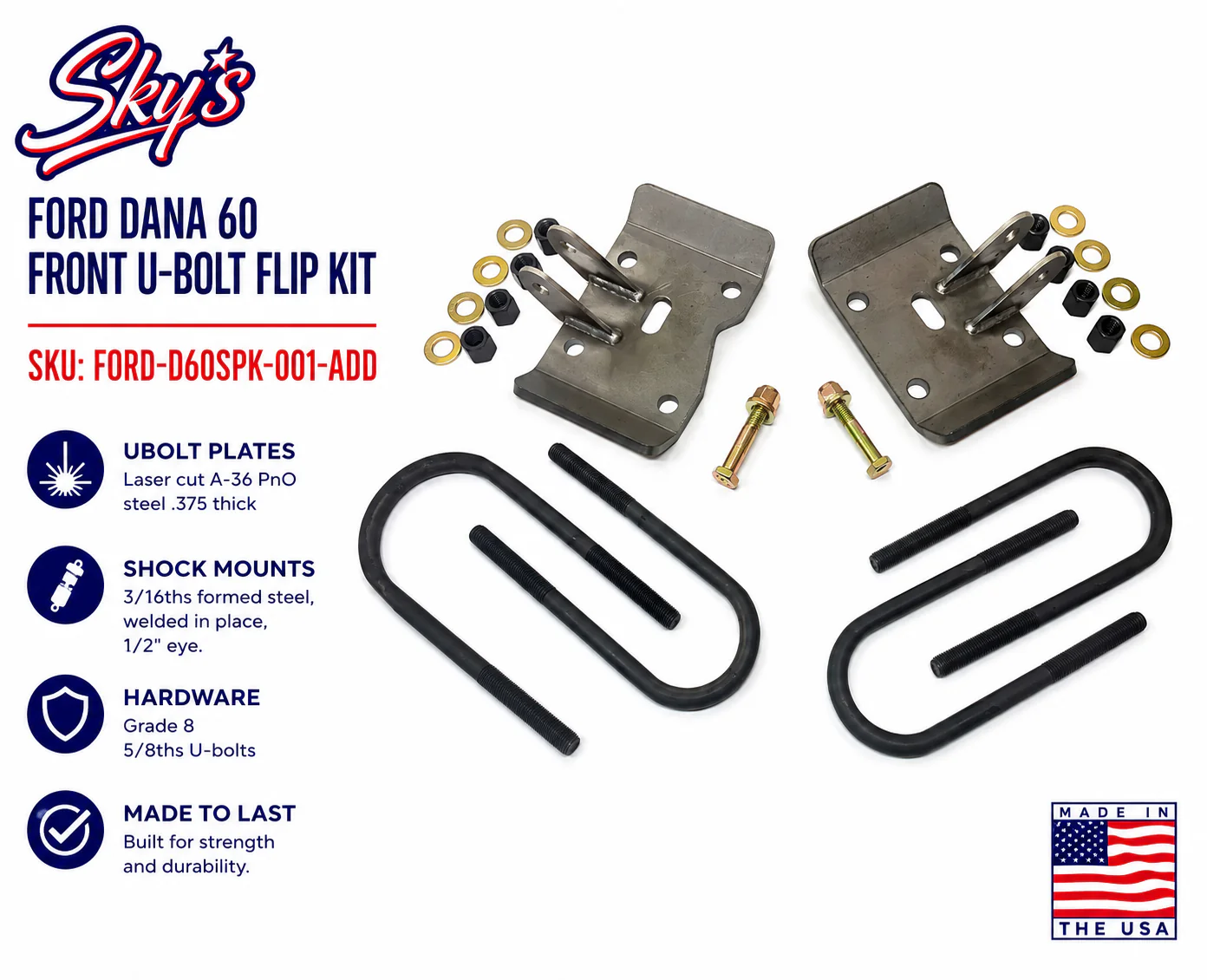

Parts Included:

  • 3 5/8-20-3" Round 9.5" U-bolt
  • 1 5/8-20-4" Round 9.5" U-bolt
  • 1 Driver Plate with Shock Mount
  • 1 Passenger Plate with Shock Mount
  • 8 5/8 Thick Flat Washers
  • 8 5/8 hi-nuts
  • 2 1/2-20x3" Bolt
  • 2 1/2" 20 Nylock nut
  • 4 1/2" Flat Washer

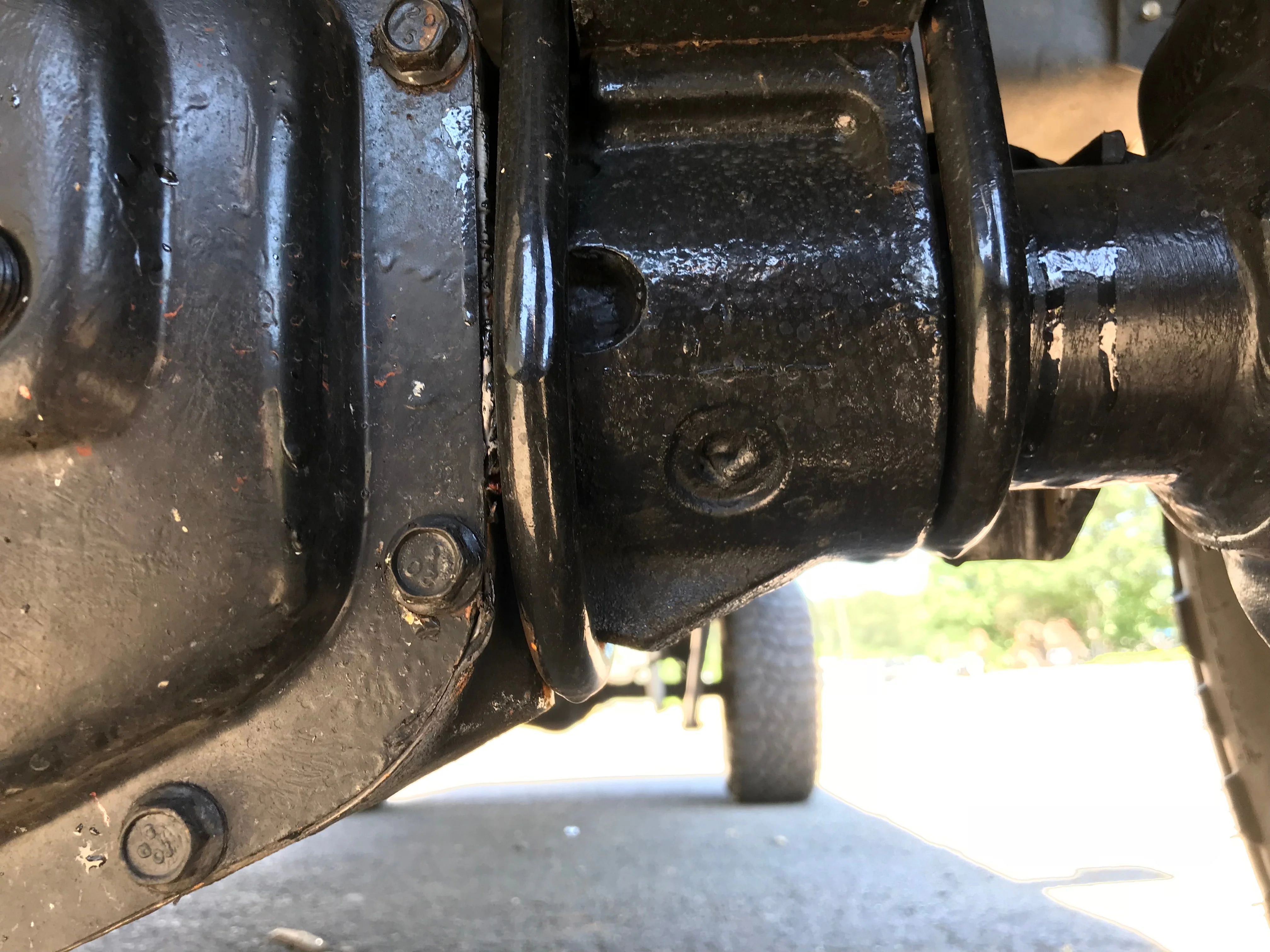

Ford Dana 60 Front U-Bolt Flip Kit - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

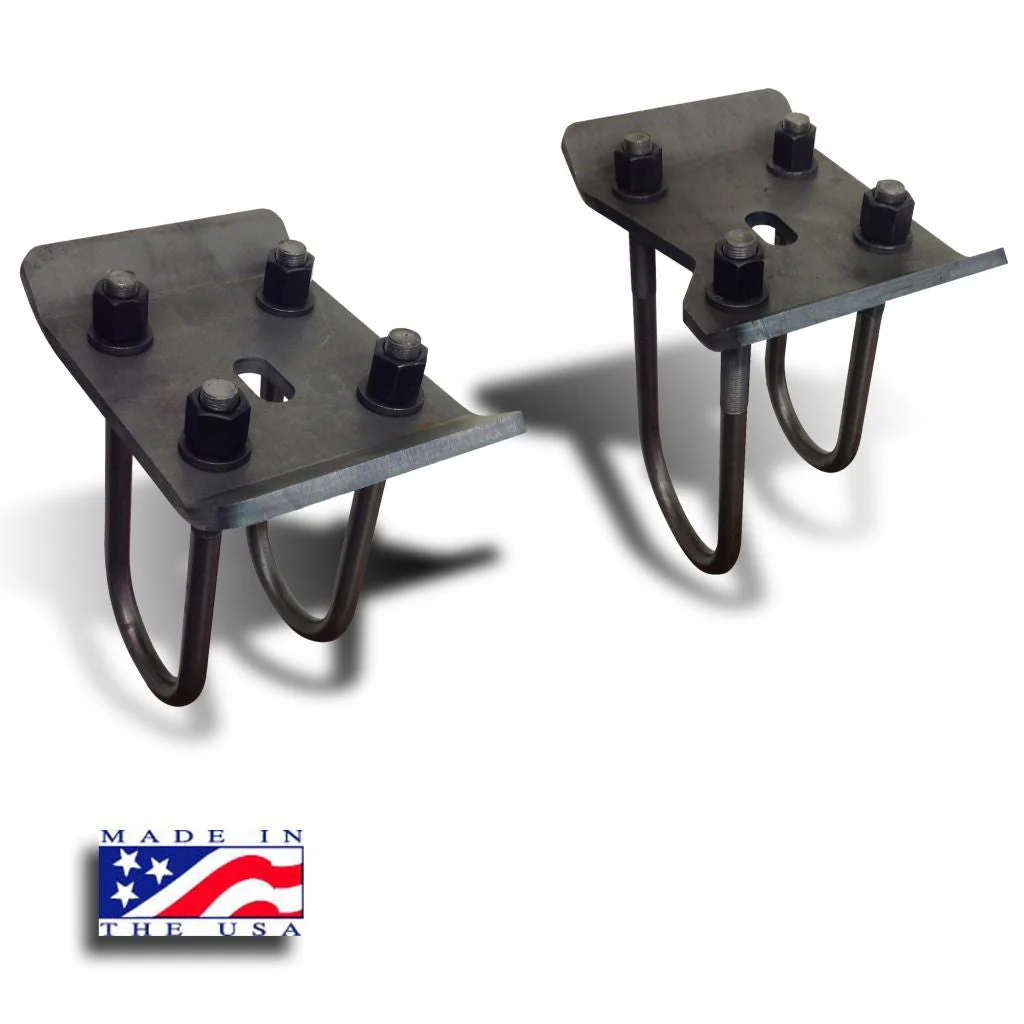

Ford Dana 60 Front U-Bolt Flip Kit - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Ford Dana 60 Front U-Bolt Flip Kit - Image 4

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

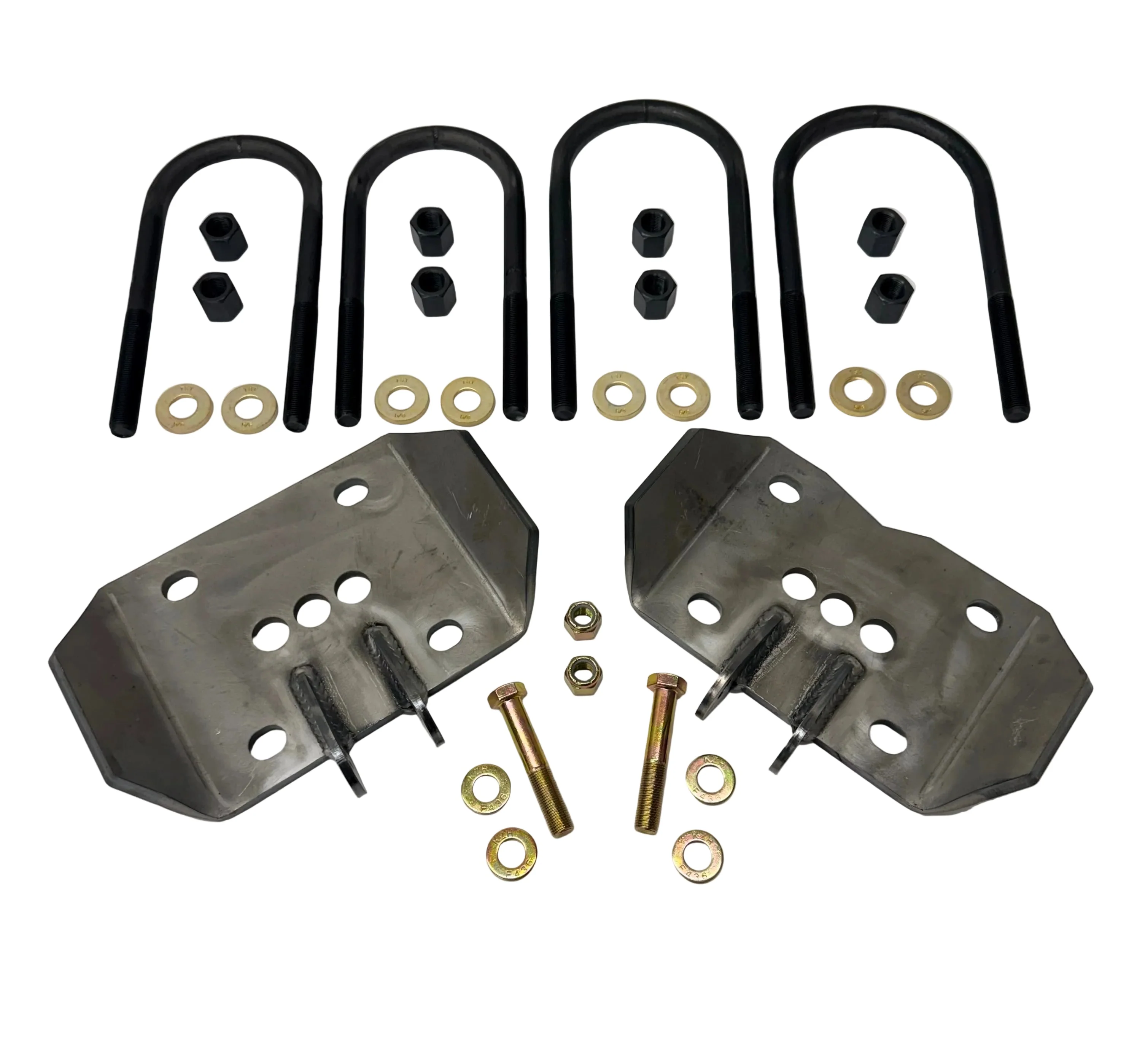

Ford Dana 60 Front U-Bolt Flip Kit - Image 5
