Transfer-Case Skid Plate

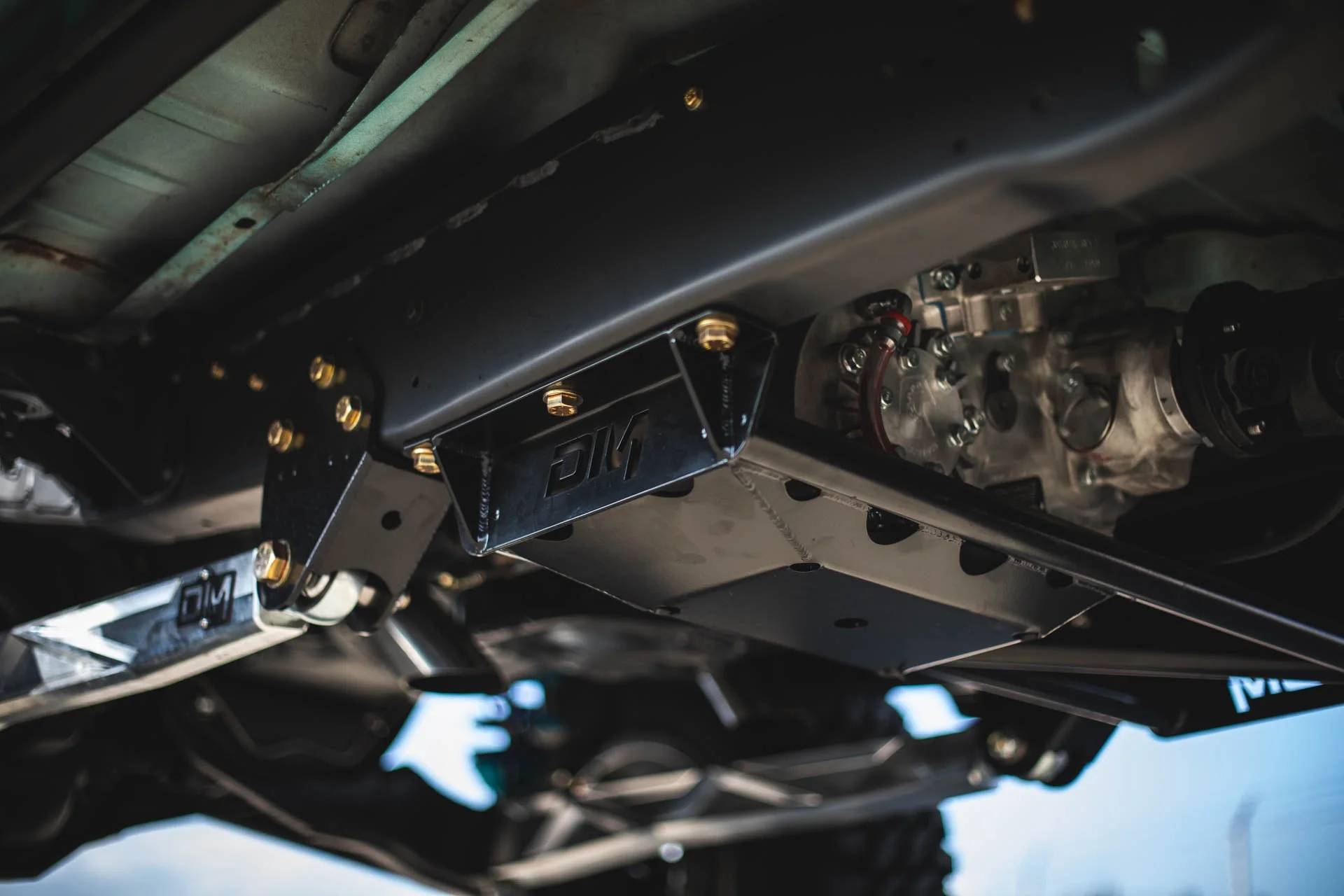

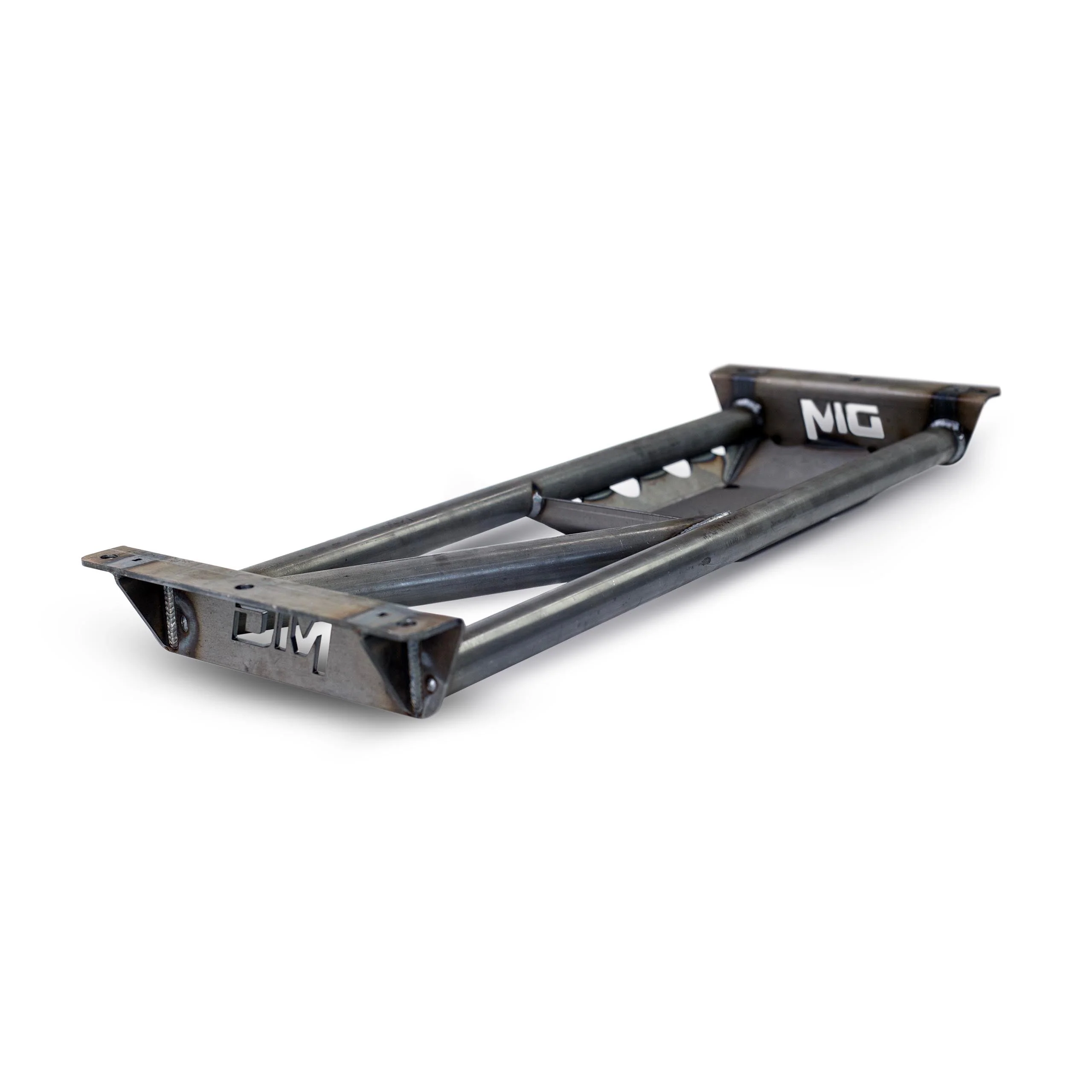

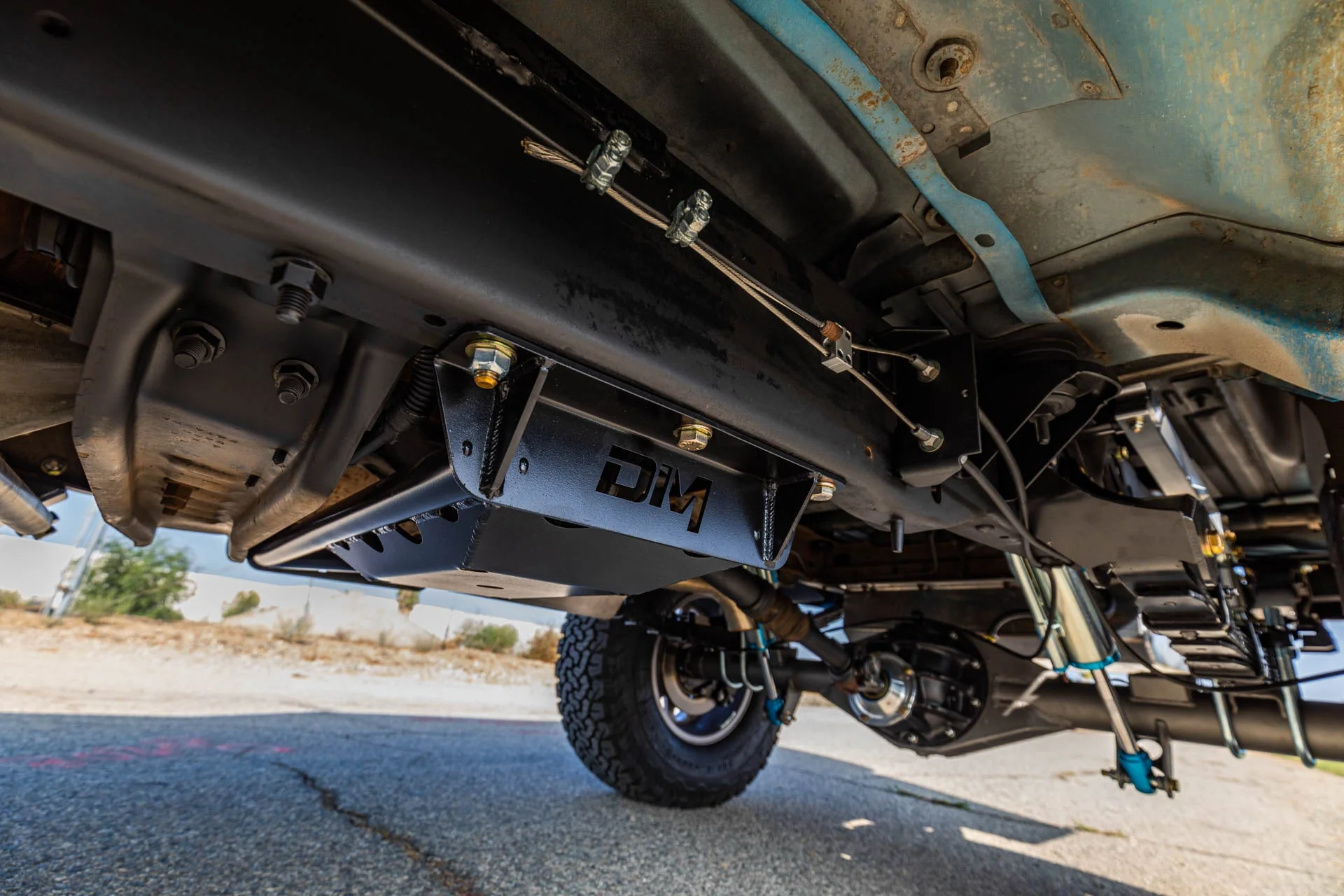

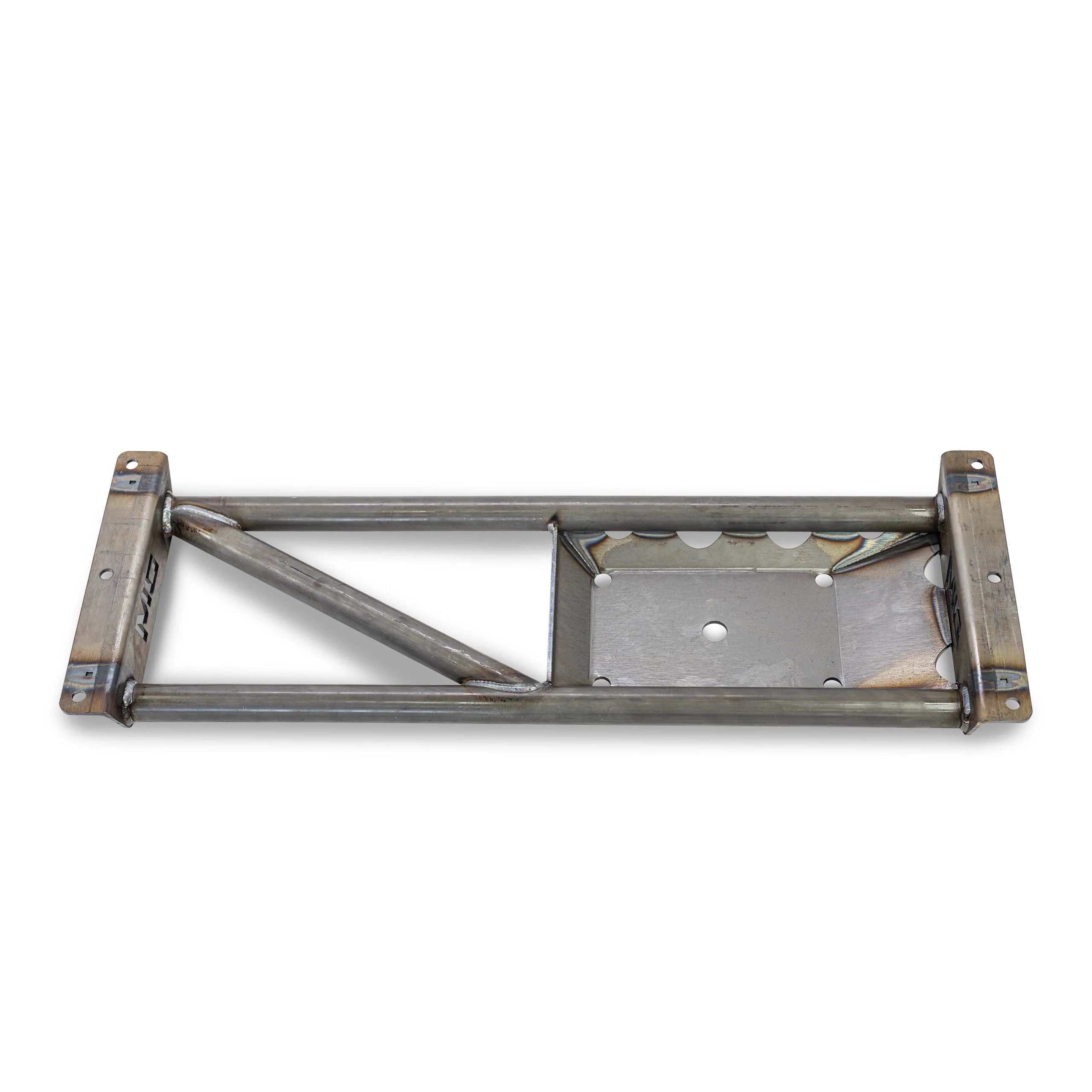

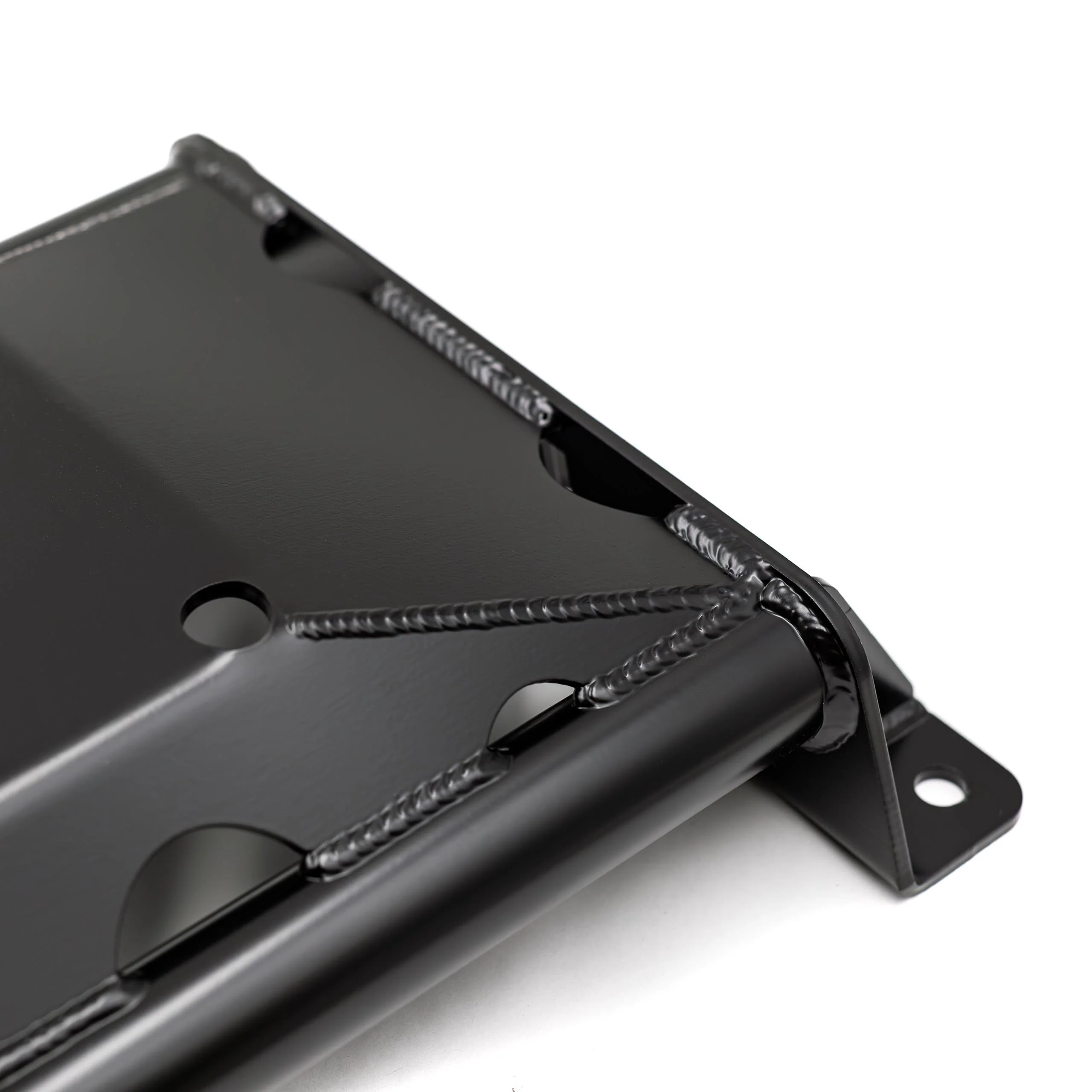

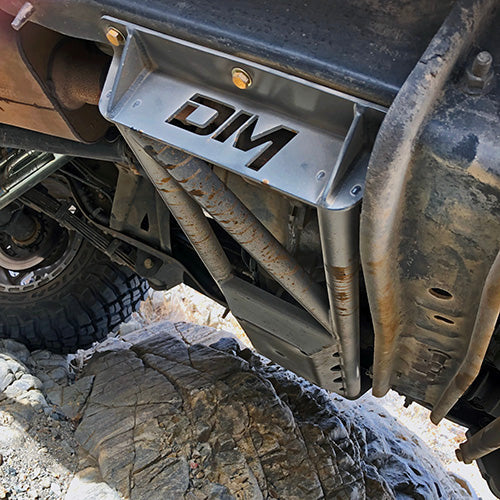

The Transfer Case Skid Plate not only looks great, but it provides maximum ground clearance while protecting your vulnerable transfer case. This will also give your truck an extra structural crossmember between your frame rails. Engineered with laser cut 3/16" steel plate and 1.5" x .120 DOM tubing. It's stout tube and plate design protects your t-case on the one side, including drainage holes allowing water and debris to escape. The other side is open, allowing heat from your exhaust system to escape. The skid plate comes raw or powder coated semi-gloss black and locates in two factory holes on your frame rail. Just drill your other four holes and bolt it on using supplied hardware. Raw option is perfect for anyone looking for a base to build off of such as transmission mounts when doing engine swaps.

NOTE: Fits Broncos and F Series truck models with AOD, E4OD and BW1356 transfer cases, however it can be used for other applications given its bolt on design. If this transfer case skid plate is used on Standard cab Truck please note that the back two bolt holes don't contact the frame rail. Spacers will need to made if customer wants to use all 6 bolt holes.

Features:

• Completely bolt on, no fabrication needed
• Heavy duty design that is much stronger than stock
