85-97 F-Series Dana 60 Brake lines

**NOTE BRAKE LINES ARE TYPICALLY GREY BUT MAY BE BLACK**

High quality stainless brake lines designed with a correct sized banjo fitting to fit calipers F-250/F-350 from 85-97. These will also work on the 99-04 Super Duty Dana 50/60 axles.

• Recommended for lifts 3" and up
• Necessary for Super Duty axle swaps
• For 05+ coil sprung axles check these out

Application:

Front Lines:

(Sold as a pair)

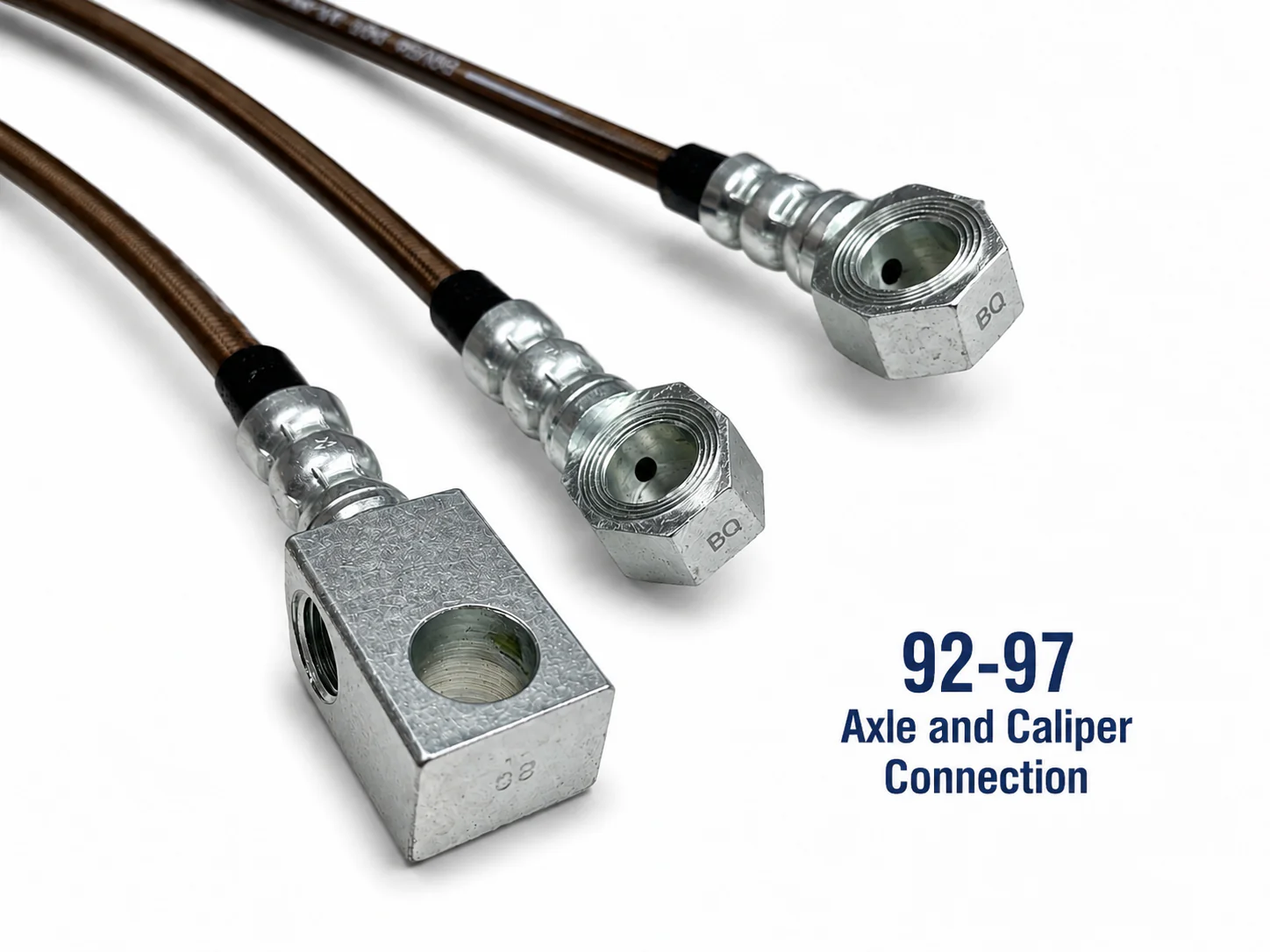

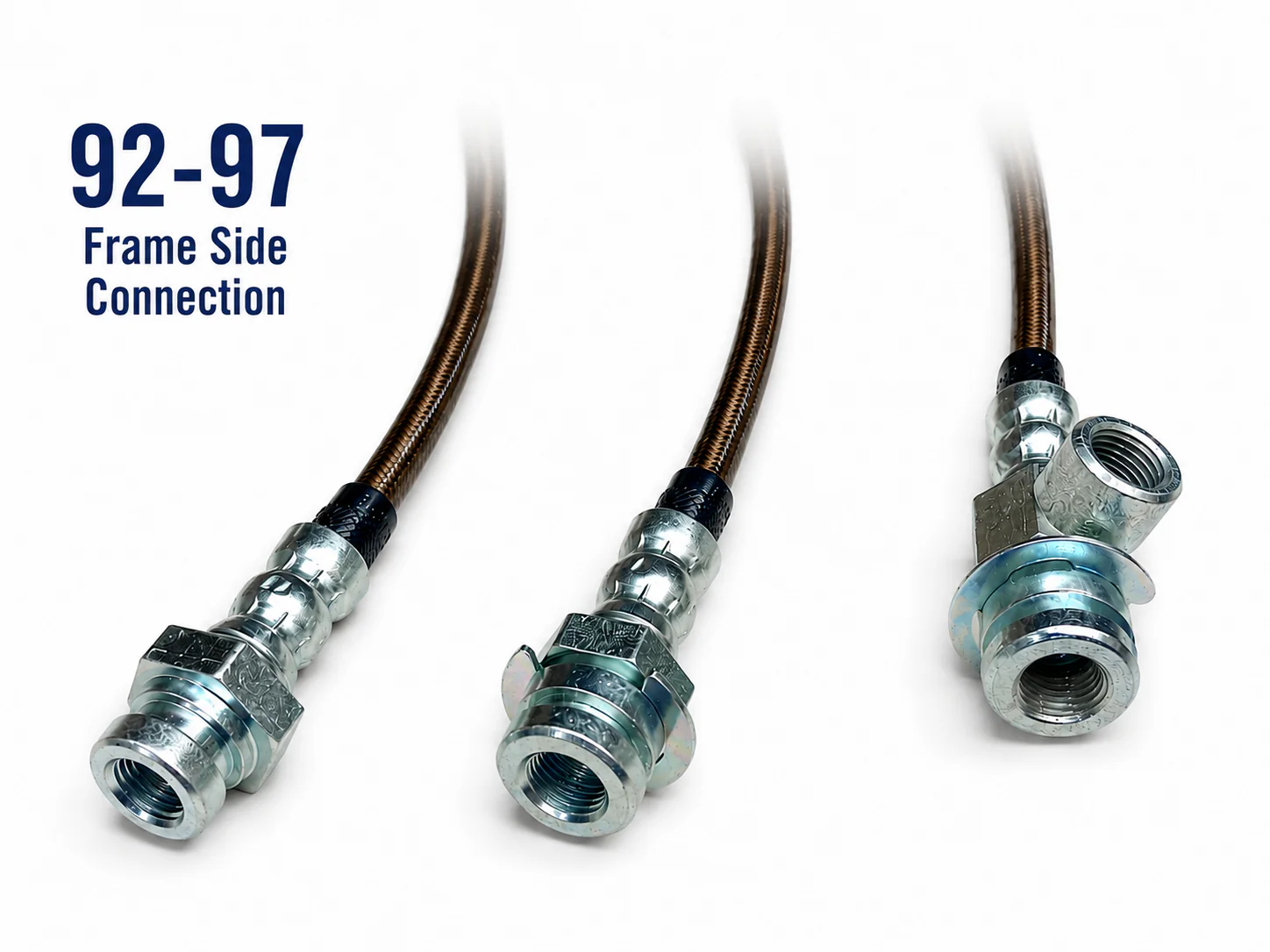

92-97 Front includes 1 return style upper fitting and 1 straight.

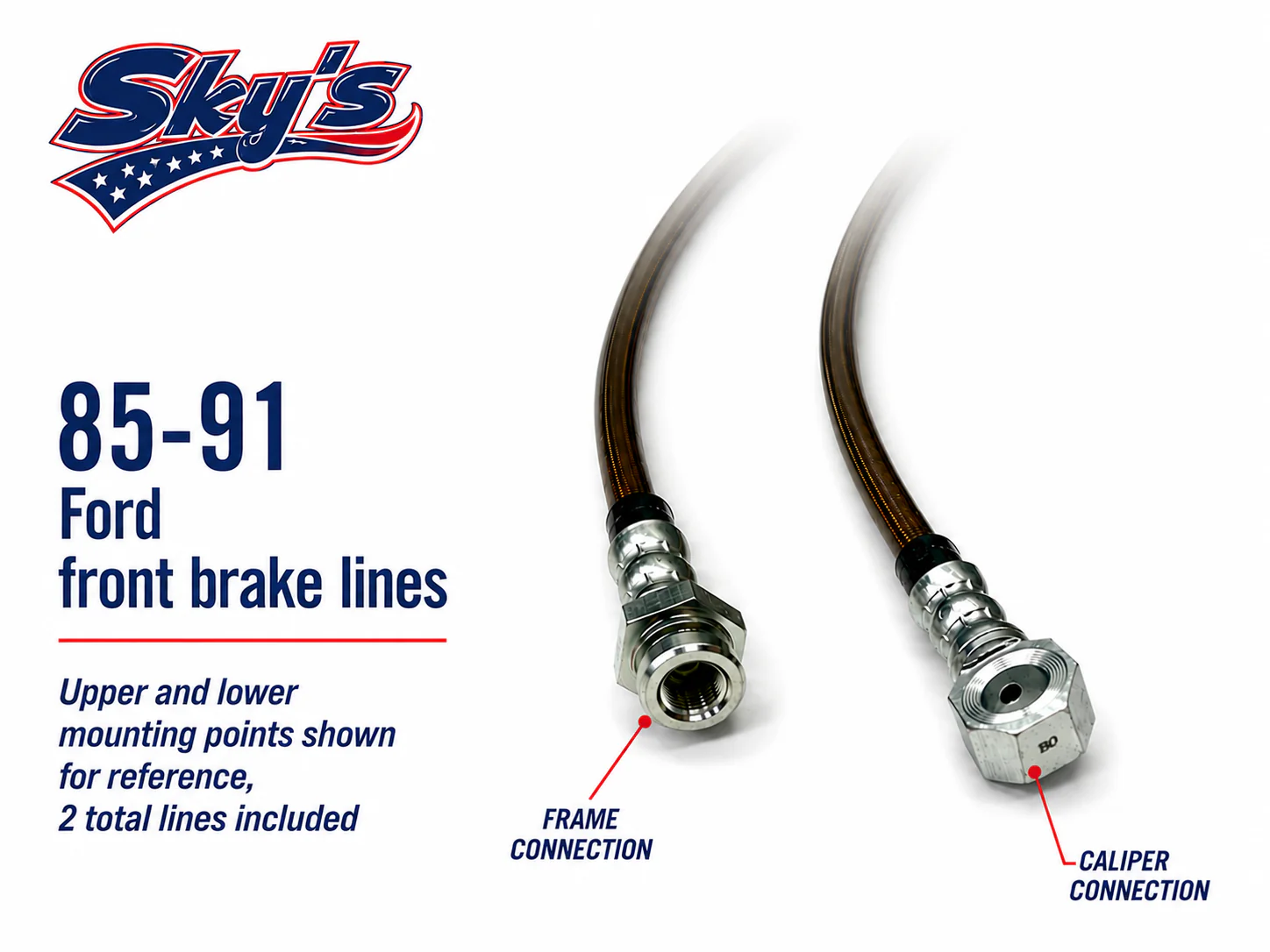

85-91 Front includes 2 straight fittings

Note, there are some earlier ( 89-91) trucks that also have the proportioning T style fitting on the driver side. You must check your truck to be sure you are purchasing the correct lines.

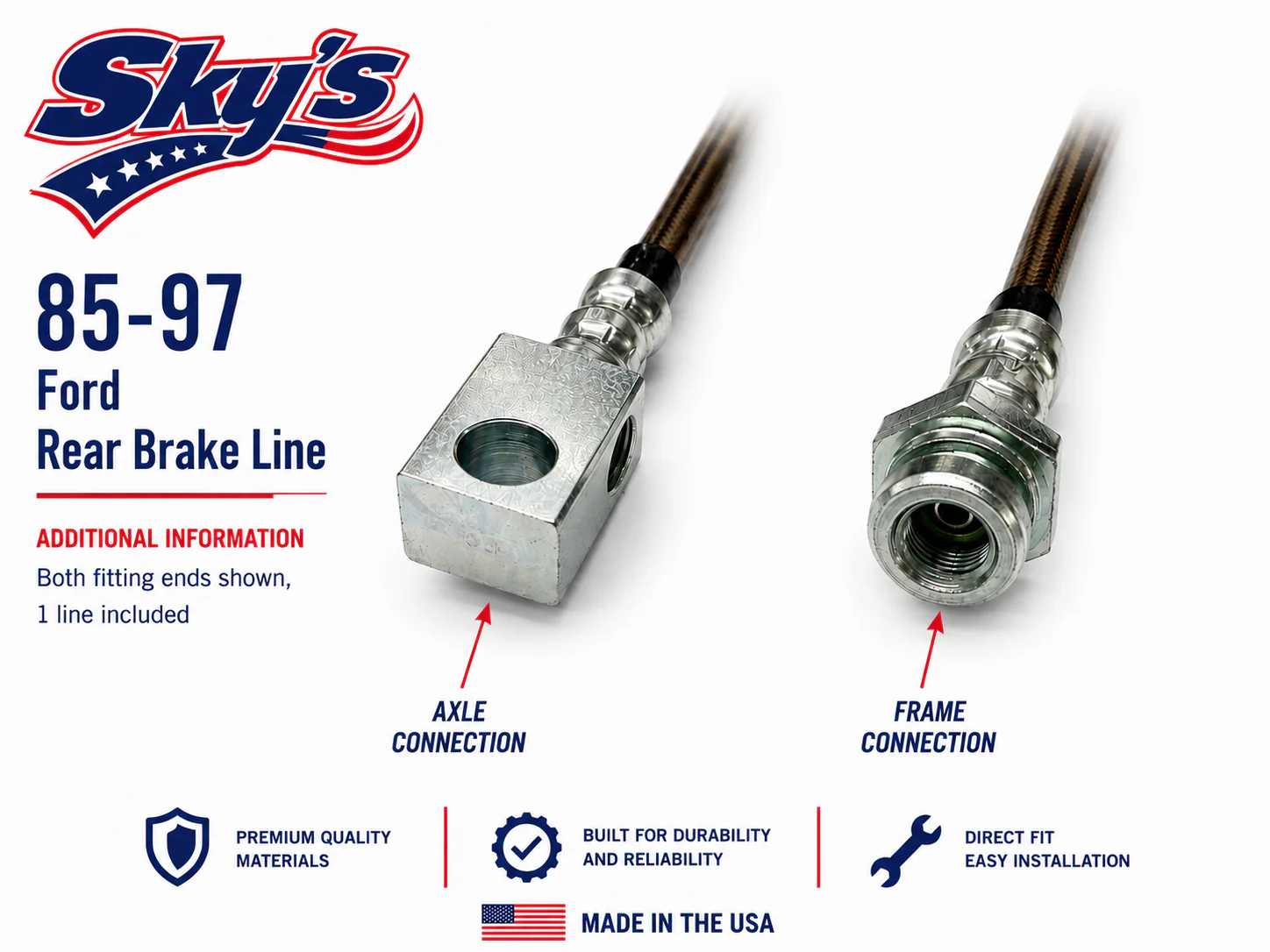

Rear Line:

Sold as a single line to extend from frame to axle

-Truck: 85-97 F-350 and F-250

-Axle: 85-17 Ford TTB or Solid Axle

• 85-97 F-250 TTB
• 85-91 Dana 60 Kingpin Axles
• 92-97 Dana 60 Balljoint
• 99-04 Dana 50/60 Balljoint


Brake line layers are Teflon-Rubber-Stainless Braid-Plastic Protective outer shell

Lines are made in the USA, DOT approved and each line is pressure tested for safety.
